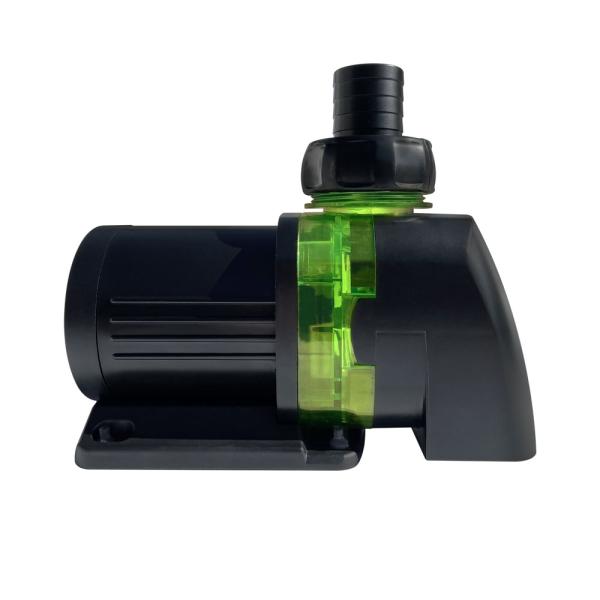

D-D funktion 3500 dc pump

A powerful multi-function DC return pump with unique digital controller, featuring 3 wave functions and a constant flow mode.

Suitable for salt or freshwater use, the sine wave technology and low voltage motor offers ultra-low running noise, low heat output and energy efficiency.

Pump Features

• Full range of high flow pumps, with compact footprint

• Unique digital controller with 3 wave functions and constant flow mode

• Sine wave technology for ultra-low running noise
• Low voltage, heat and energy efficient motor
• Suitable for salt or freshwater
• Wear resistant ceramic shaft
• Detachable footplate with anti-vibration silicone rubber feet

• Fully submersible

Flexible Installation Options

• Pump outlet can be positioned to face upwards, left, or right
• 'Elephant Nose' suction attachment included, for anti-vortex operation in shallow water with reduced bubble carryover Standard suction cage provided, for normal submerged use Quick couple unions provided, for simple pump removal Multiple flexi-hose & rigid pipe attachments included in box Controller Features
  Unique mult-function digital controller with touch button control pad
  Back it LCD colour display with adjustable screen brightness
• Mutt-language display with screen saver
• 4 different flow modes:
  Pump mode: with adjustable constant flow rate
  Wave mode with adjustable frequency and flow rate

Pulse mode. with adjustable interval times and flow rate

Storm mode, with variable frequency and flow rate

Adjustable min and max power setting in wave modes (30-100)

Feed mode and on/off functions

Run-dry detection with automatic shutdown function

difications

Power input - 24V

Mavimum wattage - 28 W

Maximum flow tate - 3500 UH

Maximum hend height - 3.5m


FP3500

• Maximum Flow Rate : 3500 L/H
• Maximum Head Height : 3.5 M
• Maximum Wattage : 28 W
• Power Output : 24 V

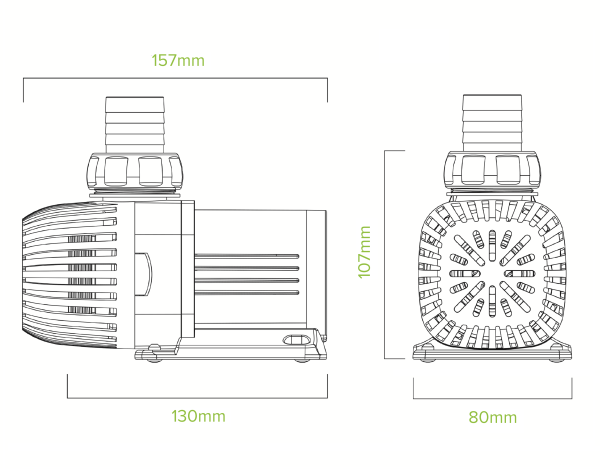

• Dimensions : 130mm (L) x 80mm (W) x 107mm (H) (Not including hose fitting)
• Flexible Hose Adapters Included : 20mm x1 / 25mm x1
• Rigid Pipe Adapters Included : 25mm x1
