AI Axis 90
AI Axis 90
Axis pumps offer full control, wireless smart device programming, DC motor quiet operation, and output calibration. Features that have traditionally been reserved for considerably larger and more expensive pumps. These features allow for:
- Coordinate Feed/Maintenance Modes- Turn all of your AI pumps on or off with a control button on a single pump.
- Prevent back-siphon- With calibration set, instead of powering off, a pump will continue to run without producing flow, preventing siphoning, which could result in air bubbles when the pump resumes its scheduled operation!
With Axis you get exactly what you need, starting with Axis 20 which is perfect for tanks 15 gallons or less.
All AI devices include smart control standard. Choose from the myAI® or Mobius app on any iOS or Android device to easily set up or program your AI equipment. Add Neptune Fusion control via Apex with Apex and MXM module.

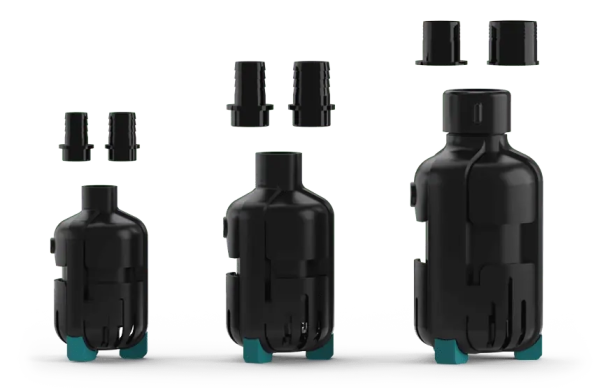

Nozzle Sizes (Barbed)
AXIS 40 Small: 16mm / 0.625in. Large: 20mm / 0.75in.
SPECIFICATIONS
Max Head - ≈2.8 m (≈9 ft.)
Flow Rate - ≈1500 lph (≈400 gph)
Recommended Tank Size - Up to ≈40 gallons
Power Consumption - Variable, 20W max
Input - 100–240VAC, 50-60Hz, 1A
